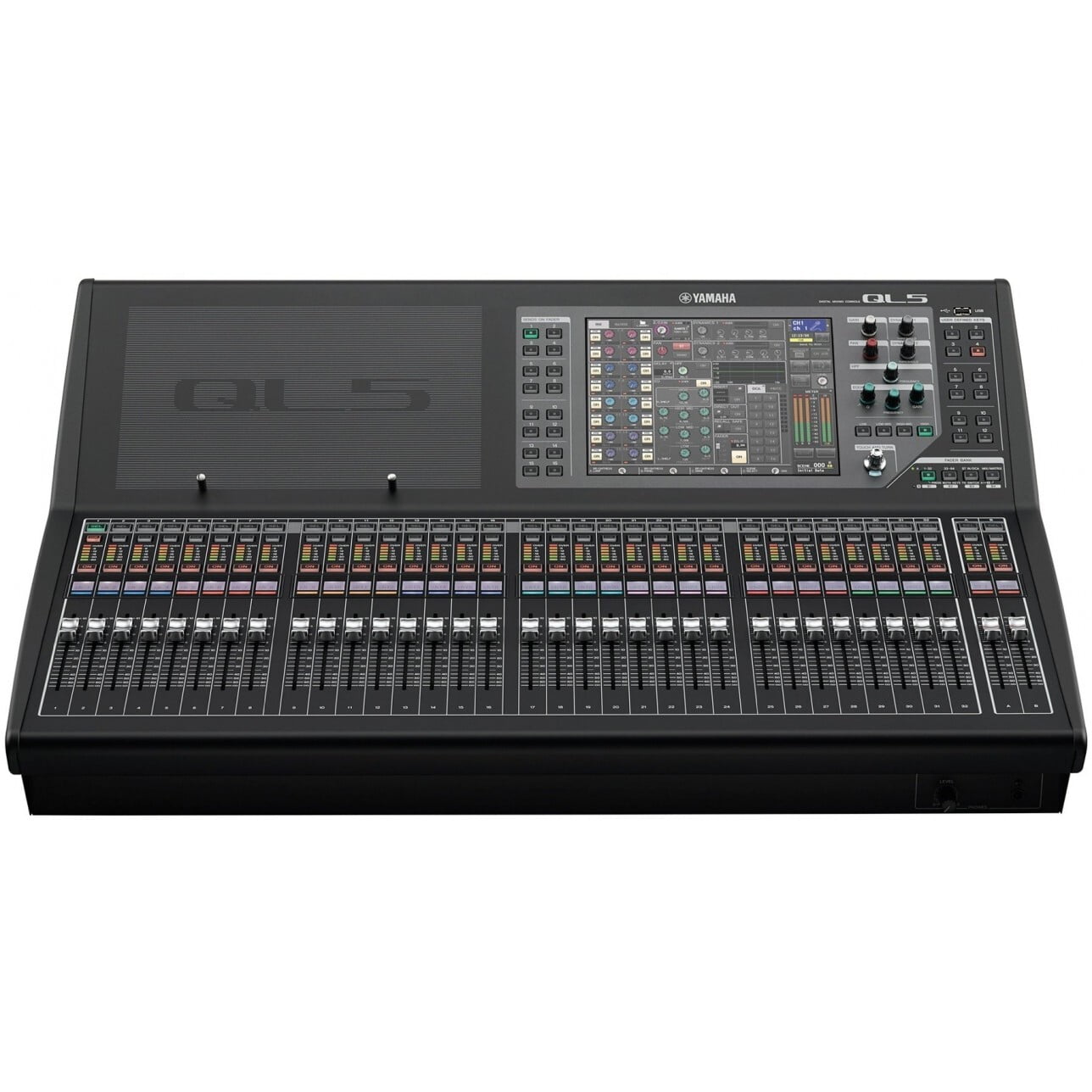

![Yamaha QL5 Audio Mixer Yamaha QL5 Audio Mixer](/product-images/yamaha_ql5-xlarge.jpg/85101000000073851/900x900)
Yamaha QL5 Audio Mixer
Non-returnable
$900.00
The Yamaha QL5 64-channel digital mixer is packed with many of the core features of their acclaimed CL Series, making it your ideal compact all-in-one solution for mixing, processing, and routing audio. Loaded with premium internal processors, including stellar-sounding EQ and dynamics tools developed in cooperation with Rupert Neve Designs, the QL5 will bring out the best sonic character in any source. With built-in autodium-scale live sound, corporate speech events, broadcast, and more!
Quantity
Product Details
Type:Digital
Channels:64 mono, 8 stereo mixing channels
Inputs - Mic Preamps:32 x XLR
Phantom Power:32 channels
Talkback:Yes
Inputs - Digital:2 x EtherCon Cat5 (Dante Primary, Secondary)
Outputs - Main:16 x XLR (Omni)
Outputs - Digital:1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
MIDI I/O:In, Out
Data I/O:Ethernet
Channel Inserts:Yes
Busses/Groups:16 x Bus
I/O Expansion Slots:2 x Slots (MY expansion)
Headphones:1 x 1/4"
Word Clock:In, Out
Faders:34 x 100mm Throw
EQ Bands:4-band Parametric
Effects:Yes
Height:10.7"
Depth:22.2"
Width:32.6"
Weight:48.1 lbs.
Manufacturer Part Number:QL5
