Nexo LS600 Sub
Non-returnable
$95.00
Tags:

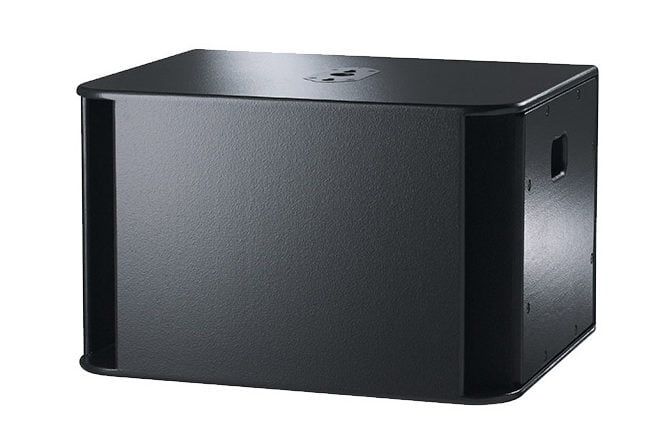

A high power system capable of producing 138 dB Peak SPL, the new LS600 Sub-Bass extends the usable range of the PS10-R2 Loudspeaker to 38Hz, providing exceptional performance and high power output in an extremely compact, light weight package. Two LS600s are typically used with two PS10-R2 loudspeakers, additional units may be used for an enhanced effect. PS10-R2 and LS600 presets presets in the DTD Controller ensure cost-effective and simple system implementation while the NXAMP powered controller offers full network connectivity and the facility to combine PS10-R2/LS600 configurations with any other Nexo cabinets.
KEY FEATURES
- High-power system (138dB Peak SPL @ 1m) with 15in VLF long excursion driver
- VLF extension (to 38Hz) of PS10-R2 loudspeakers
- Sophisticated control electronics ensure reliable, linear operation
- Integral pole mount that supports one or two PS10-R2 loudspeakers
Quantity
Product Details
SPECIFICATIONS
| Frequency Response [a] | 40 Hz - 110 Hz ±3dB |
| Usable Range @-6dB [a] | 38Hz - 120 Hz |
| Sensitivity 1W @ 1m [b] | 101 dB SPL Nominal |
| Nominal Peak SPL @ 1m [b] | 135 to 138 dB Peak |
| Crossover Frequencies | 40-85, 40-120 or 60-120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Amplifiers | 1000 to 2000 Watts / 8Ω |
FEATURES
| Components | 1 x 15” (38cm) long excursion Neodymium 8Ω driver |
| Height x Width x Depth | 435mm x 688mm x 528 mm |
| (17.12” x 27.09” x 20.79”) | |
| Weight | 30 kg (66 Lbs) |
| Connectors | 2 x NL4MP Speakon 4 pole |
| Construction | Baltic Birch Ply & textured black coating |
| Fittings | Handles 2 Metal recessed pockets |
| Flying Points | One plate connecting with external accessories |
| Stand fittings | Internal Steel Stand Fitting on top (35mm, 1 3/8”) allows pole mounting |
