Disguise VX2 Media Server

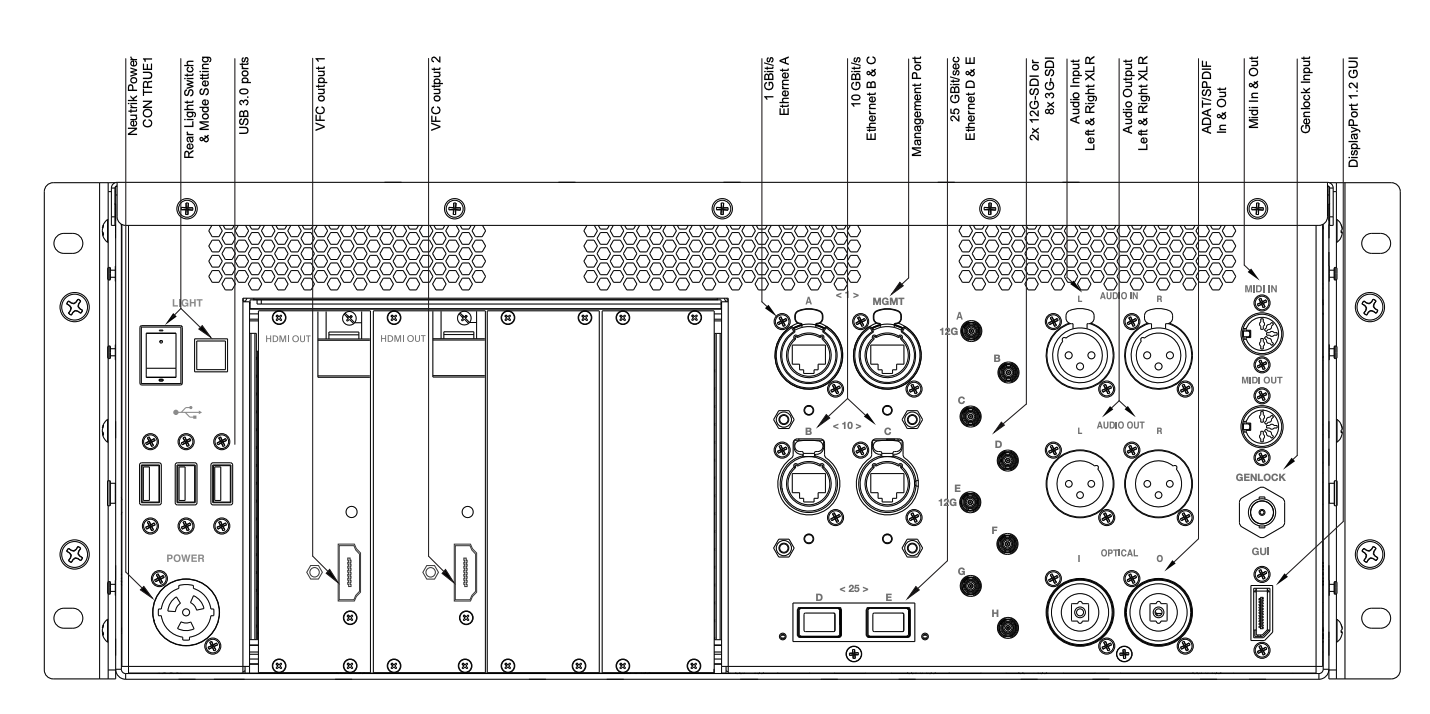

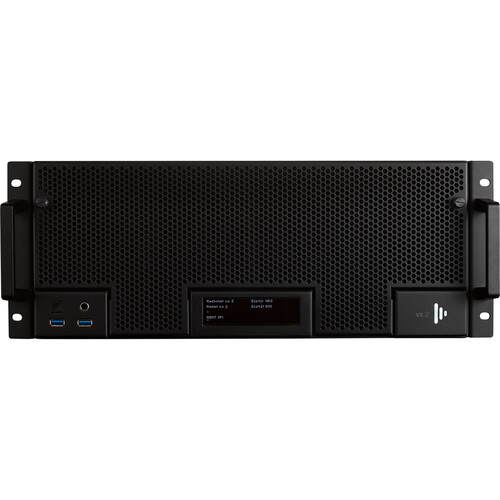

Capture, render, and play back high-resolution VFX or VR graphics with this vx 2 Media Server from disguise. This 4 RU server unit is built upon the vx 4 chassis standard with numerous expansion possibilities. It provides eight 3G-SDI inputs that can also input two 4K or two 12G-SDI input signals, and can play back lossless 10-bit uncompressed video with up to 4K60 resolution. It includes two HDMI 2.0 VFC output cards, which can be swapped out for optional output cards using its two VFC slots.

The vx 2 features a fast Intel Xeon 2.5 GHz processor, an ultra-fast 3.84TB NVMe SSD, a DisplayPort monitor output, USB keyboard/mouse/peripheral ports, and 48GB of DDR4 RAM for smooth video playback performance. It also features five fast Ethernet ports at 1 Gb/s, 10 Gb/s, and 25 Gb/s speeds. The unit comes with Windows 10 Enterprise installed and the full disguise production suite.
