BROMPTON XD Distribution Unit
$1,750.00

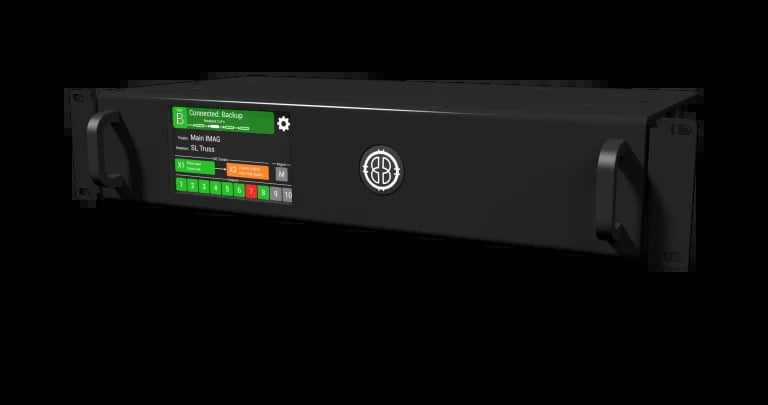

The Tessera XD 10G data distribution unit works seamlessly with the Tessera SX40 LED processor to deliver a flexible, sophisticated single box solution designed specifically to easily and cost-effectively support the biggest LED projects.
The Tessera SX40 processor and Tessera XD data distribution unit support both copper and single mode optical fibre trunk connections, and the Tessera XD can be used to convert between the two media.
Trunk connections between a Tessera SX40 and Tessera XD, or between Tessera XD units, use a 10G Ethernet-based backbone to reduce the number of home-run connections required.
Trunk connections from a Tessera XD unit use a 10G Ethernet-based backbone to reduce the number of required home-run connections to the processor.
The Tessera XD uses a proprietary multiplexing algorithm, built on top of standard 10G Ethernet, to ensure that tight timing constraints are met and all fixtures remain perfectly in sync.
To keep cabling as simple and affordable as possible, each 10G trunk supports up to ten independent 1G connections, compatible with off-the-shelf switches if you need to further split the signals.
Quantity
Product Details
INPUTS
- One 10G Tessera Protocol copper input for connection from SX40
- Supports Neutrik etherCON Cat 6A / etherCON (CAT5e) connectors
- Compatible with standard Cat6A / Cat5e RJ45 connectors
- Requires Cat6A cable (up to 60m) or Cat5e cable (upto 30m)
- One 10G Tessera Protocol fibre input for connection from SX40
- Supports Neutrik opticalCON DUO / DUO ARMORED / DUO X-TREME / DUO LITE connectors
- Compatible with standard LC-Duplex connectors
- Requires 1310nm, 9/125um single-mode fibre (up to 2KM) with PC or UPC connectors
OUTPUTS
- 10 x 1G Tessera Protocol output ports for connection to fixtures
- Neutrik etherCON connectors, compatible with standard RJ45
- Each 1G output is capable of 525K pixels at 8bpc, 60Hz
- Pixel capacity per 1G port scales according to selected bit depth and framerate
- 10G Tessera Protocol thru for daisy-chaining of up to five additional XDs with shared bandwidth
- Auto-switching between fibre and copper
- Thru port auto-switches independently from input
