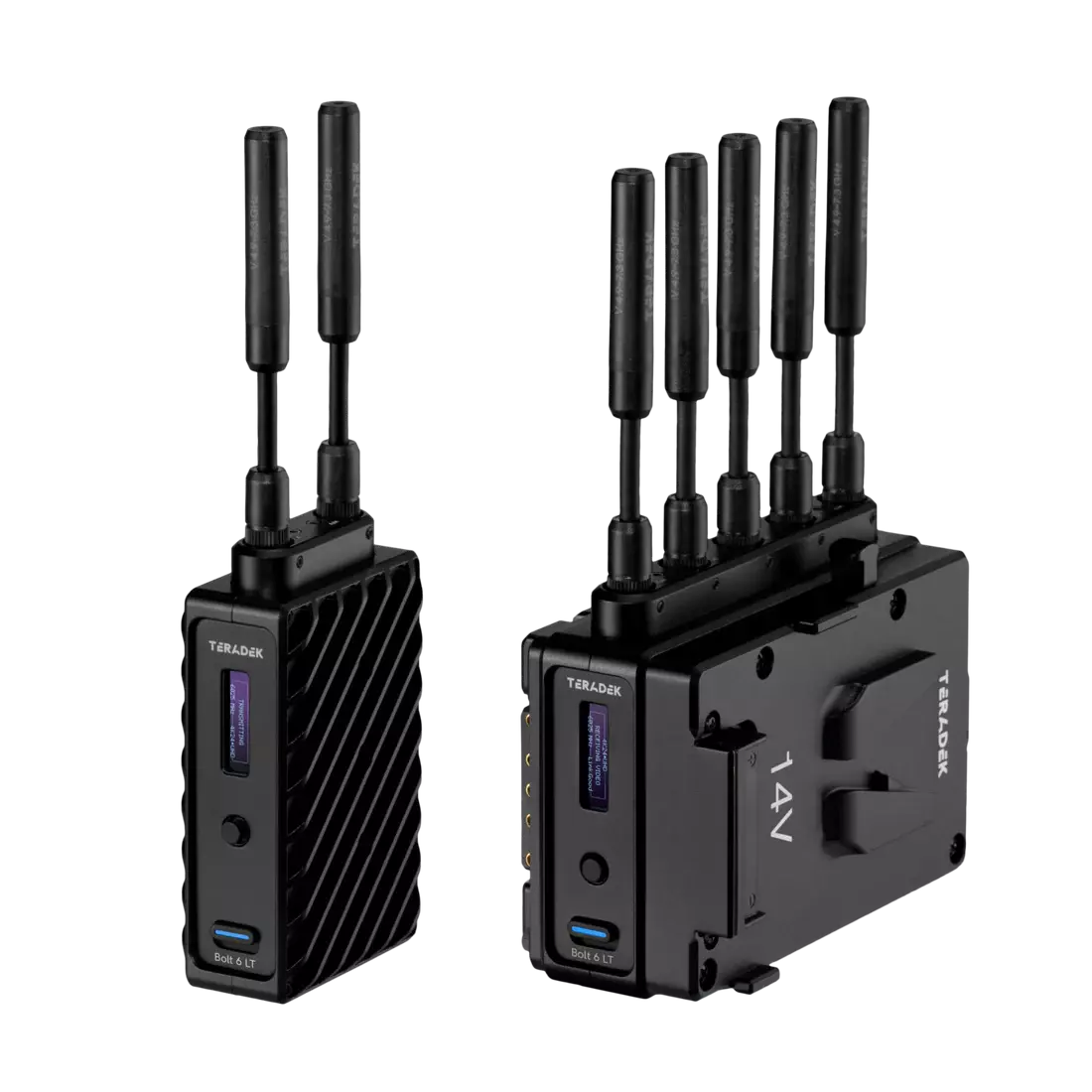

Teradek Bolt 6 LT 750 (V-Lock)
$0.00
Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.
Bolt 6 LT Sets offers line-of-sight at 750 ft or 228m and includes V (vertical) antennas.
Bolt 6 LT Sets offers line-of-sight at 750 ft or 228m and includes V (vertical) antennas.
More information can be seen here
Quantity
Product Details
| Antenna Ports | Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video | Transmitter: 1 x HDMI Type A (HDMI 1.4b) Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 1.4b) Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
Format Support
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 28 VDC |
| Battery Type | Transmitter/Receiver: 1 x V-Mount |
| Power Consumption | Transmitter: 9 W Receiver: 11 W |
Environmental
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
General
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | Transmitter: 7.3 oz / 206 g Receiver: 10.3 oz / 292 g |
