ACME Pixel Line IP 1000 (IP66)

Model

• Model Name: PIXEL LINE IP
• Model Code: STROBE 3 IP

Version

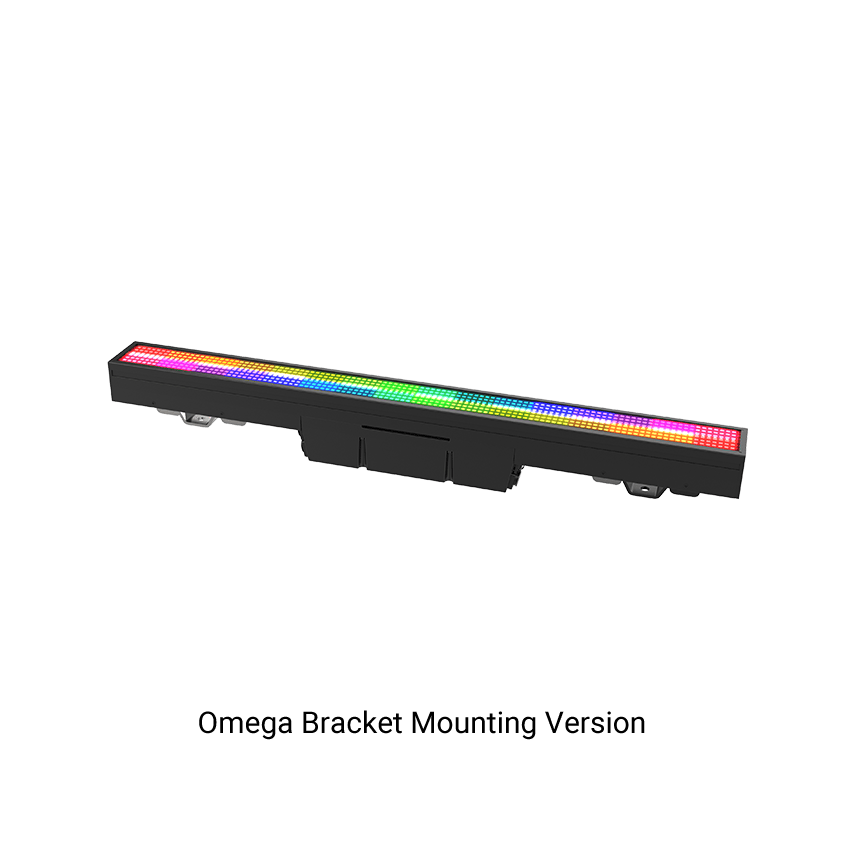

• Version 1: STROBE 3 IP (Omega Bracket Mounting)
• Version 2: STROBE 3 IPS (Sliding Adjustable Clamp)
• Note: Different vesions cannot be connected together

Light Source

• Light Source :
• • 672 x 0.5W RGB LEDs (can be divided into 32 controllable sections)
  • 112 x 3W CW LEDs (can be divided into 16 controllable sections)
• Color Temperature Output of Fixture: 7,000K-7,500K
• Life Expectancy: 30,000 hours*
  *Source manufacturer specification

Photometric Data

• Total Lumen Output of Fixture: 21,900 lumens

Optical System

• Beam Angle :
• • RGB: 101°
  • CW: 108°
• Field Angle :
• • RGB: 149°
  • CW: 152°
• DMX Controllable Smart Glass technology:
• • Patent No. :
  • • CN216010577U
    • US11698183B1
    • DE202023101966U1
    • FR3134870B3

Control

• 4 touch button control panel
• Display: OLED display
• Protocols: DMX512,RDM,Art-Net,sACN
• DMX Protocol Modes: 13
• Control Channels: 7/15/17/21/33/39/65/68/70/70N/112/117/119
• Firmware Upgrade: Upgrade via DMX link

Other Effects

• Outstanding strobe effect with variable speed
• Smooth dimming 0-100% (4 user selectable dimming curves)
• Outstanding color effects

Electrical and Connectors

• Input Voltage Range: 100-240Vac; 50/60Hz
• Power Consumption: 420W
• Power In/Out: Waterproof power connector in/out (On-request customized direct cord version for Power/Signal In&Out)
• Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

Physical Information

• Fixture Dimension :
• • Omega Bracket Mounting Version:
  • • Width : 1,000 mm (39.4")
    • Depth : 90 mm (3.5")
    • Height : 124 mm (4.9")
    • Weight : 7.3 kg (16.1 lbs)
  • Sliding Adjustable Clamp Version:
  • • Width : 1,000 mm (39.4")
    • Depth : 192 mm (7.6")
    • Height : 237 mm (9.3")
    • Weight : 8.3 kg (18.3 lbs)

Packing Information

• Flight Case Dimensions 1:
• • Width : 1,196 mm (47.1")
  • Depth : 580 mm (22.8")
  • Height : 750 mm (29.5")
  • Weight :
  • • Standard : G.W.: 126.5 kg (278.9 lbs) (eight-pack loader case)
• Flight Case Dimensions 2:
• • Width : 1,209 mm (47.6")
  • Depth : 565 mm (22.2")
  • Height : 655 mm (25.8")
  • Weight :
  • • Standard : G.W.: 115 kg (253.5 lbs) (eight-pack loader case)
• Flight Case Dimensions 3:
• • Width : 1,220 mm (48.0")
  • Depth : 610 mm (24.0")
  • Height : 830 mm (32.7")
  • Weight :
  • • North American Standard : G.W.: 138.2 kg (304.7 lbs) (eight-pack loader case)
• Carton Dimensions:
• • Width : 1,085 mm (42.7")
  • Depth : 195 mm (7.7")
  • Height : 320 mm (12.6")
  • Weight :
    G.W.: 10.5 kg (23.0 lbs) (one-pack loader carton)

Work Environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: -10°C
• Maximum Surface Temperature: 65°C
• Protection Rating: IP66

Approvals

• CE compliant
• cETLus compliant
• IP Class Test Verification

Installation

• Horizontal or vertical mounting
• Universal working position
• 2 omega brackets
• Safety cable attachment point

Included Items

• Digital user manual
• Power cable
• 2 omega brackets (3002003002)
